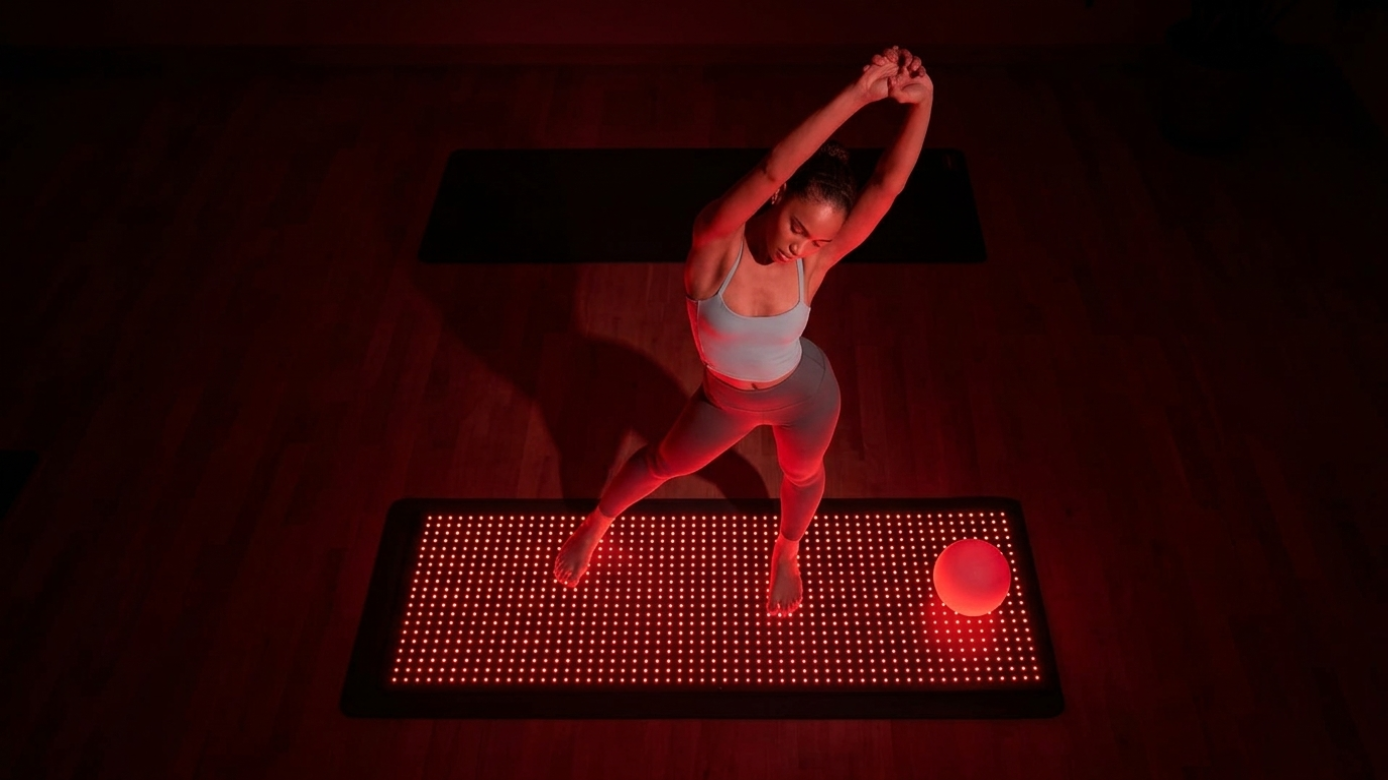

DOMINAN Infrared Red Light Pilates Mat — 1410 LEDs · 660nm + 850nm dual-wavelength infrared therapy mat for boutique mat pilates studios
Infrared MatSKU: SP-DOMINAN-IR

DOMINAN Infrared Red Light Pilates Mat

1410 LEDs · 660nm + 850nm dual-wavelength infrared therapy mat for boutique mat pilates studios

Factory-Direct Pricing
Request a Quote
Volume discounts available for 5+ units · Fully Customizable — frame color, upholstery, logo, springs & dimensions
Medical-Grade TPU Surface · 1,410 Dual-Chip LEDsFully CustomizableISO 9001 Certified

Key Features

  • 1,410 dual-chip LEDs covering full 71" × 32" body surface
  • 660nm red + 850nm near-infrared dual-wavelength therapy
  • 5 adjustable power levels (39W / 55W / 67W / 87W / 109W)
  • 3 therapy modes: Constant · 10Hz alpha · 40Hz gamma
  • Medical-grade TPU surface (93% less odor, FDA-listed)
  • Sweatproof, waterproof, wipe-clean in seconds
  • 10-90 minute auto-off timer
  • 110V / 220V universal voltage for global studios
  • CE · FCC · RoHS · ISO 9001 certified manufacturing
  • 3-year commercial warranty
Request a Quote
Email SalesExplore Full Catalog →

We fully customize every model — frame color, upholstery, logo, springs, dimensions. MOQ 3 units for branded runs.

DOMINAN Infrared Red Light Pilates Mat — Detail Gallery

Close-up views of frame construction, springs, carriage system, and finish details, photographed at our factory.

DOMINAN Infrared Red Light Pilates Mat detail photo 1 — Medical-Grade TPU Surface · 1,410 Dual-Chip LEDs construction close-up

Quick Answer

What is the DOMINAN infrared red light Pilates mat from SourcePro? The DOMINAN Infrared Red Light Pilates Mat is SourcePro's commercial-grade infrared therapy mat designed specifically for boutique mat pilates studios. It features 1,410 dual-chip LEDs emitting 660nm red light and 850nm near-infrared light across a 71" × 32" (180cm × 81cm) full-body surface, with 5 adjustable power levels (39W-109W) and 3 pulse modes (Constant, 10Hz alpha, 40Hz gamma). The medical-grade TPU surface produces 93% less odor than standard mats and is sweatproof and waterproof. Every mat passes 7-stage brutal validation — documented in our on-site stress-testing video — including 100,000+ flex cycles and 1,000+ hour LED burn-in for 8+ hours daily commercial studio operation. 3-year commercial warranty included.

infrared red light pilates mat1410 LEDs pilates mat660nm 850nm therapy matcommercial grade infrared matboutique mat pilates studio equipment

About the DOMINAN Infrared Red Light Pilates Mat

The DOMINAN mat is the first infrared red light therapy mat designed specifically for boutique mat pilates studios. Unlike consumer-grade mats that fail after 1-2 years of daily studio use, every DOMINAN mat passes our 7-stage brutal validation process before leaving the factory. The 1,410 upgraded dual-chip LEDs combine 660nm red light (epidermis/dermis recovery, collagen stimulation) with 850nm near-infrared (deep tissue, joint pain relief, post-workout recovery) at five adjustable power levels from 39W to 109W. Three pulse modes — Constant, 10Hz alpha-wave, and 40Hz gamma-wave — let instructors tailor each session. The medical-grade TPU surface produces 93% less odor than standard mats, is sweatproof and waterproof, and wipes clean in seconds. Sized at 180cm × 81cm, the DOMINAN accommodates full-body mat pilates, yoga, stretching, and post-workout recovery on a single surface. Built for 8+ hours of daily commercial operation.

Technical Specifications

SpecificationDetails
Product TypeFull-Body Infrared Red Light Therapy Mat
Dimensions71" × 32" (180 cm × 81 cm)
LED Count1,410 upgraded dual-chip (3-in-1) LEDs
Wavelengths660nm red light + 850nm near-infrared (NIR)
Max Therapy Power109W (5 levels: 39 / 55 / 67 / 87 / 109W)
Pulse ModesConstant · 10Hz alpha · 40Hz gamma
Timer10 to 90 minutes (auto-off)
Surface MaterialMedical-grade TPU (93% odor reduction)
BackingSoft fabric non-slip base
Surface FeaturesSweatproof · Waterproof · Wipe-clean
Voltage110V / 220V universal
CertificationsCE · FCC · RoHS · ISO 9001 manufacturing
Warranty3 years (commercial studio use)
Commercial-Grade Validation

Brutal Testing — Built for 8+ Hours Daily Studio Operation

Every DOMINAN mat passes our 7-stage brutal validation process before leaving the factory. Consumer-grade infrared mats fail within 12-18 months of commercial studio use — the DOMINAN is engineered for 5+ years of 8-hour daily operation in boutique mat pilates studios.

Watch the full brutal test: real stress testing footage of the DOMINAN infrared red light pilates mat — engineered and validated specifically for commercial boutique mat pilates studios.

Watch on YouTube
Test 01

100,000+ Flex Cycle Test

Zero LED failure

Mechanical flexor cycles the mat through 100,000+ full bends simulating years of studio use. Pass criterion: zero LED failure, zero crack propagation in TPU surface, zero conductor fracture.

Test 02

200kg Industrial Load Test

Holds 200kg static

200kg static load applied across full mat surface for 24 hours. Pass criterion: zero deformation, zero LED displacement, all structural supports retain original geometry.

Test 03

1,000+ Hour LED Burn-In

≥90% luminance retained

All 1,410 LEDs operate at full 109W power continuously for 1,000+ hours. Pass criterion: minimum 90% luminance retention, zero color shift beyond ΔE<3, zero dead pixels.

Test 04

IPX4 Waterproof & Sweat Test

No water ingress

Splash-water from all angles plus 8-hour continuous sweat exposure with saline solution. Pass criterion: zero water ingress into LED array, zero corrosion on controller contacts, full functionality retained.

Test 05

TPU Chemical Resistance

No surface degradation

Mat surface exposed to commercial cleaning agents (isopropyl alcohol, quaternary ammonium, bleach 1:10) for 500+ cycles. Pass criterion: zero surface degradation, zero odor change, zero color shift.

Test 06

1.5m Hardwood Drop Test

Zero functional damage

Mat fully rolled and dropped from 1.5m onto hardwood floor — 6 faces, 3 edges. Pass criterion: zero LED damage, zero functional failure, controller remains fully operational.

Test 07

Extreme Temperature Test

-10°C to 50°C

Continuous operation cycle from -10°C (cold studio / shipping) to 50°C (heated studio / summer) for 72 hours. Pass criterion: zero thermal-shock LED failure, zero TPU delamination, full power range functional.

Test 08

110V / 220V Voltage Stability

Global studios ready

Tested across 90V-130V and 200V-240V with 15% voltage fluctuation simulation. Pass criterion: stable power output across full 39W-109W range, no controller reset, no LED flicker under load variation.

All units serialized · QC report included with every shipment

DOMINAN Infrared Red Light Pilates Mat — Frequently Asked Questions

Common questions about the DOMINAN Infrared Red Light Pilates Mat. Can't find your answer? Contact our sales team.

What is the DOMINAN Infrared Red Light Pilates Mat?
The DOMINAN is a commercial-grade full-body infrared red light therapy mat designed specifically for boutique mat pilates studios. It contains 1,410 dual-chip LEDs that emit both 660nm red light (for skin and surface tissue) and 850nm near-infrared light (for deep muscle, joint, and connective tissue). The mat measures 71" × 32" (180cm × 81cm) and supports five adjustable power levels up to 109W, three pulse modes (Constant, 10Hz, 40Hz), and a 10-90 minute auto-off timer. The surface is medical-grade TPU that produces 93% less odor than standard mats and is sweatproof and waterproof.
Is the DOMINAN mat safe for daily commercial use in a mat pilates studio?
Yes. The DOMINAN is engineered for 8+ hours of daily operation in commercial boutique mat pilates studios. Every unit passes our 7-stage brutal validation: 100,000+ flex cycle test, 200kg industrial load test, 1,000+ hour LED burn-in (no luminance drop below 90%), IPX4 waterproof test, TPU chemical resistance (cleaning agents, sweat, oil), 1.5m drop test onto hardwood, and extreme temperature test from -10°C to 50°C. The medical-grade TPU surface is FDA-listed and produces 93% less odor than consumer mats. 3-year commercial warranty included.
How does 660nm + 850nm dual-wavelength red light therapy work?
The DOMINAN mat uses two wavelengths simultaneously. 660nm red light targets the epidermis and dermis layers, stimulating cellular repair, boosting collagen production, and enhancing skin vitality. 850nm near-infrared penetrates beyond the skin into deep tissue, muscle fibers, and joints, reducing inflammation, accelerating post-exercise recovery, and providing long-lasting pain relief. Combined in a single session, they offer full-spectrum recovery for both surface and deep-tissue layers — ideal for post-pilates recovery, lower-back pain relief, and stress reduction.
What do the 10Hz and 40Hz pulse modes do?
The DOMINAN offers three therapy modes. Constant mode delivers both 660nm and 850nm at the selected power level for steady-state therapy. 10Hz pulse mode operates at the alpha-wave frequency associated with cellular stimulation, calm recovery, and parasympathetic nervous system activation — ideal for end-of-class cooldown and stress relief. 40Hz pulse mode operates at the gamma-wave frequency for rapid energy transfer to muscles and joints, ideal for targeted pain relief and post-workout recovery.
How is the DOMINAN mat different from consumer infrared mats?
Three key differences. (1) Commercial-grade durability — DOMINAN passes 100,000+ flex cycles and 1,000+ hour LED burn-in, designed for 8+ hours daily studio operation; consumer mats typically fail within 12-18 months of studio use. (2) Power and LED density — 1,410 dual-chip LEDs and 109W max power deliver a true full-body therapeutic dose; consumer mats often have 200-400 single-wavelength LEDs at 20-40W. (3) Medical-grade TPU surface — 93% less odor, FDA-listed material, sweatproof and waterproof for daily wipe-down; consumer mats use PVC or basic PU that degrade with commercial cleaning agents.
Can I order the DOMINAN mat in bulk for my studio chain?
Yes, we offer tiered wholesale pricing for orders of 5+ units, custom OEM branding (logo silk-screened on the mat and controller), and white-glove international shipping. Each mat ships in a single heavy-duty flight case with controller, power cable, and setup manual. Typical lead time is 20-35 days depending on quantity. Contact our sales team with your studio count and target countries for a factory-direct quote.
